Product Name: 24V 30A 5PIN SPDT auto relay

Rated Voltage: 24VDC(12VDC is optional)

Rated Current: 30A

Contact Configuration: 1 Form C (SPDT)

Operating Temperature: -40℃ ~ +75℃

Electrical Life: 50,000 cycles

Type of Enclosure: Dust proof cover

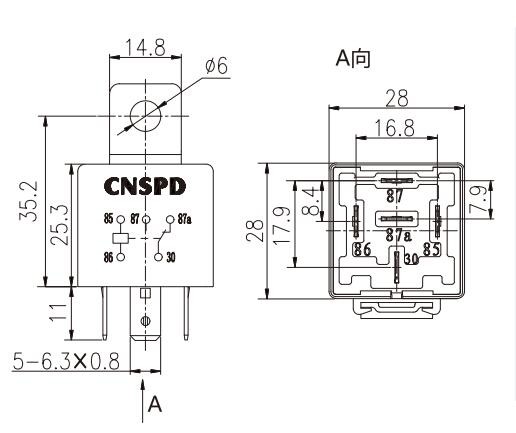

Dimension: 28.0 × 28.0 ×35.3 mm (not measure the bracket)

Reference No.: JD2914
