Product Name: 24V 30A 4PIN auto air conditioner relay

Rated Voltage: 24VDC

Rated Current: 30A

Contact Configuration: 1 Form A (SPST/NO)

Operating Temperature: -40℃ ~ +75℃

Electrical Life: 50,000 cycles

Type of Enclosure: Dust proof cover

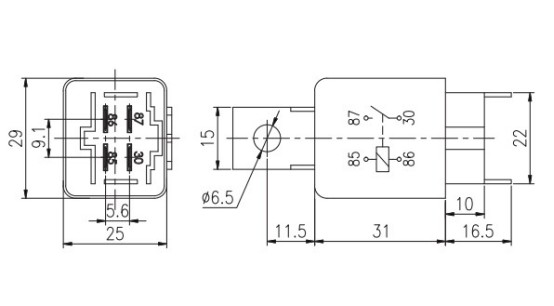

Dimension: 29.0 × 25.0 ×47.5 mm (not measure the bracket)
