Product Name: 12V 24V 25A 5PIN automotive micro relay

Rated Voltage: 24VDC(12VDC is optional)

Rated Current: 25A

Contact Configuration: 1 Form C (SPDT)

Operating Temperature: -40℃ ~ +75℃

Electrical Life: 100,000 cycles

Type of Enclosure: Dust proof cover

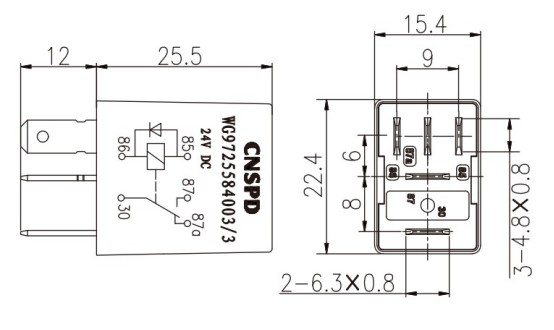

Dimension: 22.4 × 15.4 ×37.5 mm

OE No.: WG9725584003

Application: SINOTRUK
