Product Name: 24V 150A Tyco type starter relay

Rated Voltage: 24VDC(12V is optional)

Rated Current: 150A

Contact Configuration 1 Form A (SPST/NO)

Operating Temperature: -40℃ ~ +75℃

Electrical Life: 50,000 cycles

Type of Enclosure: Epoxy sealed

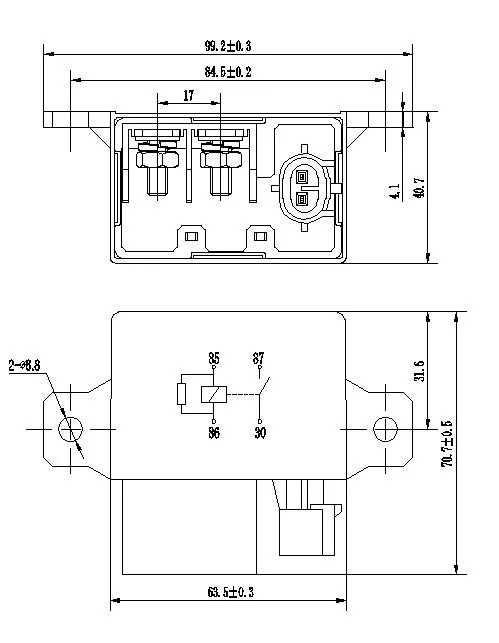

Dimension: 99.2 × 70.7 ×40.7 mm

Reference No.: 1393315-9, 1-1393315-1
