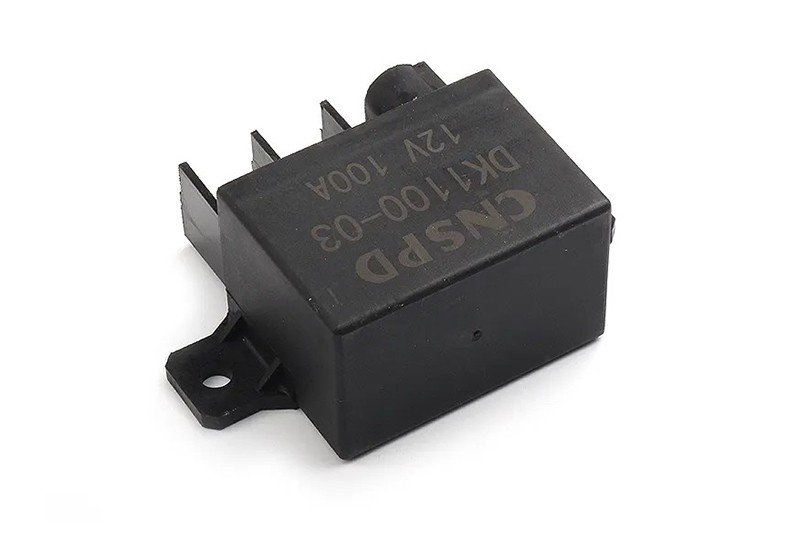

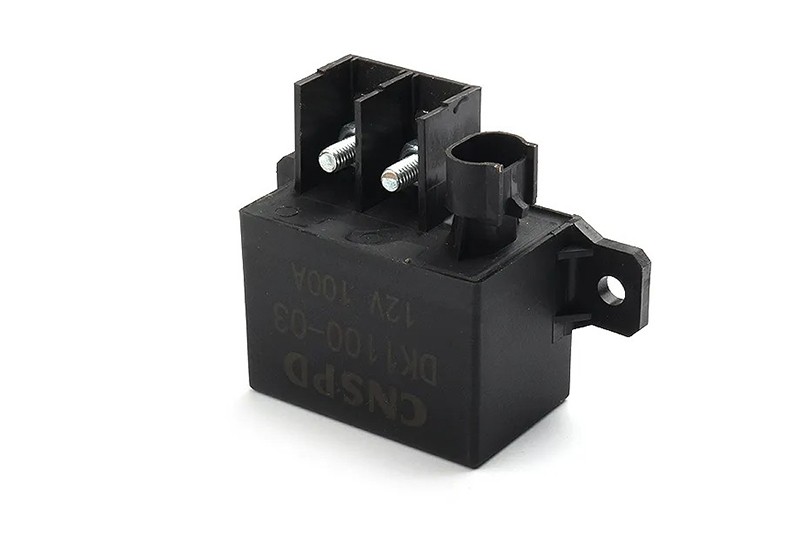

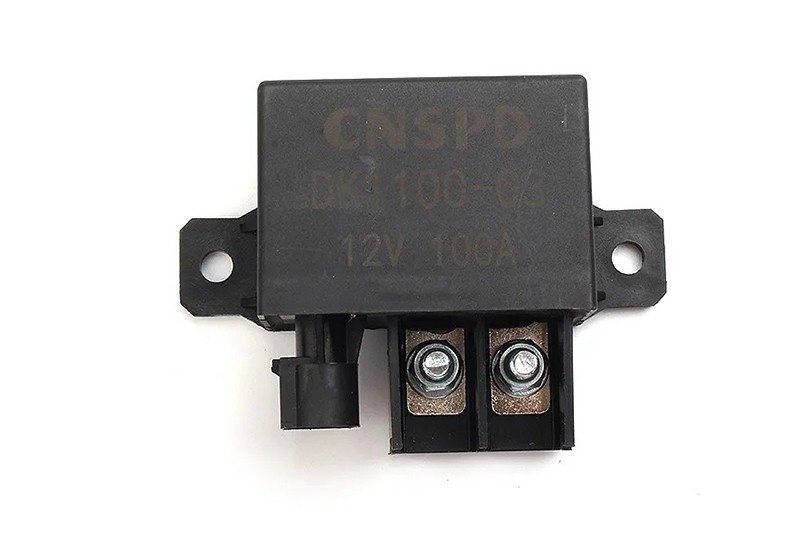

Product Name: 12V 100A Tyco type starter relay
Rated Voltage: 12VDC(24V is optional)
Rated Current: 100A
Contact Configuration 1 Form A (SPST/NO)
Operating Temperature: -40℃ ~ +75℃
Electrical Life: 50,000 cycles
Type of Enclosure: Epoxy sealed

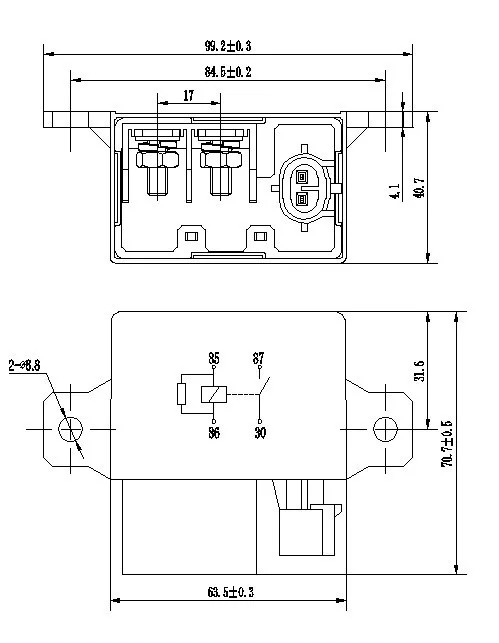

Dimension: 99.2 × 70.7 ×40.7 mm
Reference No.: 1393315-2, 1416010-1
